Solar Panel Specifications

📌 Cell Information

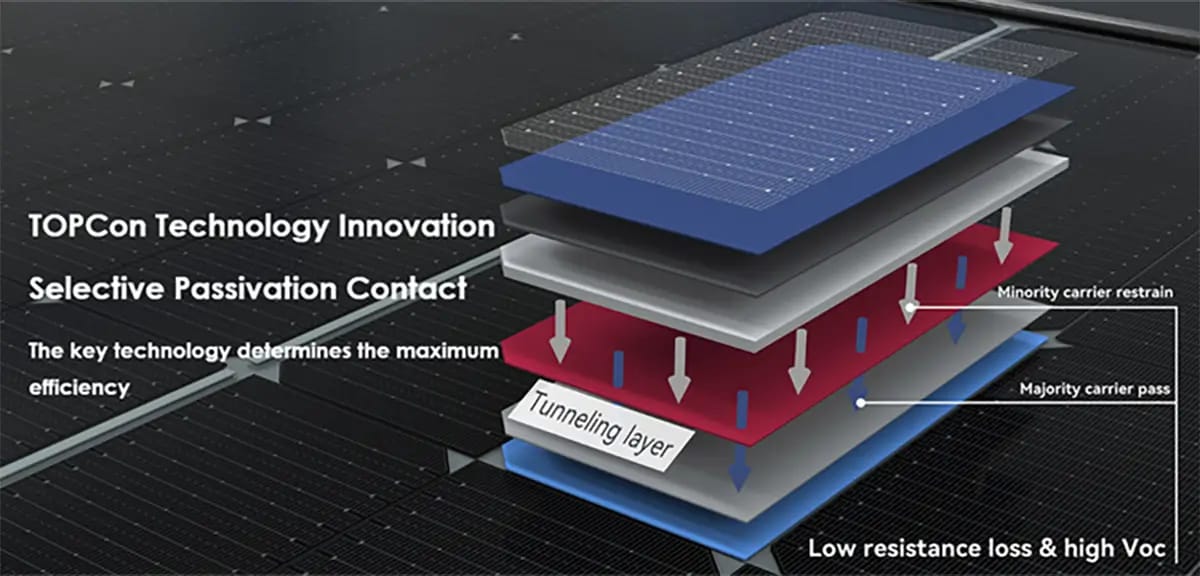

• Cell Type: N-type Mono-crystalline

• Number of Cells: 132 (66×2)

📐 Dimensions & Weight

• Dimensions: 2384 × 1303 × 33 mm

• Weight: 37.5 kg

🪟 Glass & Frame

• Front Glass: 2.0 mm, Anti-Reflection Coating

• Back Glass: 2.0 mm, Heat Strengthened Glass

• Frame: Anodized Aluminium Alloy

🔌 Junction Box & Cables

• Junction Box: IP68 Rated

• Output Cables: 4.0 mm²

  • (+): 400 mm

  • (–): 200 mm

  • Or customized length

🔒 Safety & Protection

• Protection Class: Class II

• IEC Fire Type: Class C

⚡ Electrical Parameters (STC)

• Maximum Power (Pmax): 715W

• Maximum Power Voltage (Vmp): 40.77V

• Maximum Power Current (Imp): 17.54A

• Open-circuit Voltage (Voc): 48.8V

• Short-circuit Current (Isc): 18.60A

• Module Efficiency (STC): 23.02%

• Power Tolerance: 0 ~ +3%

🌡️ Temperature Coefficients

• Pmax: -0.29% / °C

• Voc: -0.25% / °C

• Isc: +0.045% / °C

📋 Test Conditions (STC)

• Irradiance: 1000 W/m²

• Cell Temperature: 25°C

• Air Mass (AM): 1.5

🛡️ Warranty

• 25 Years Linear Output Warranty (without physical damage)
