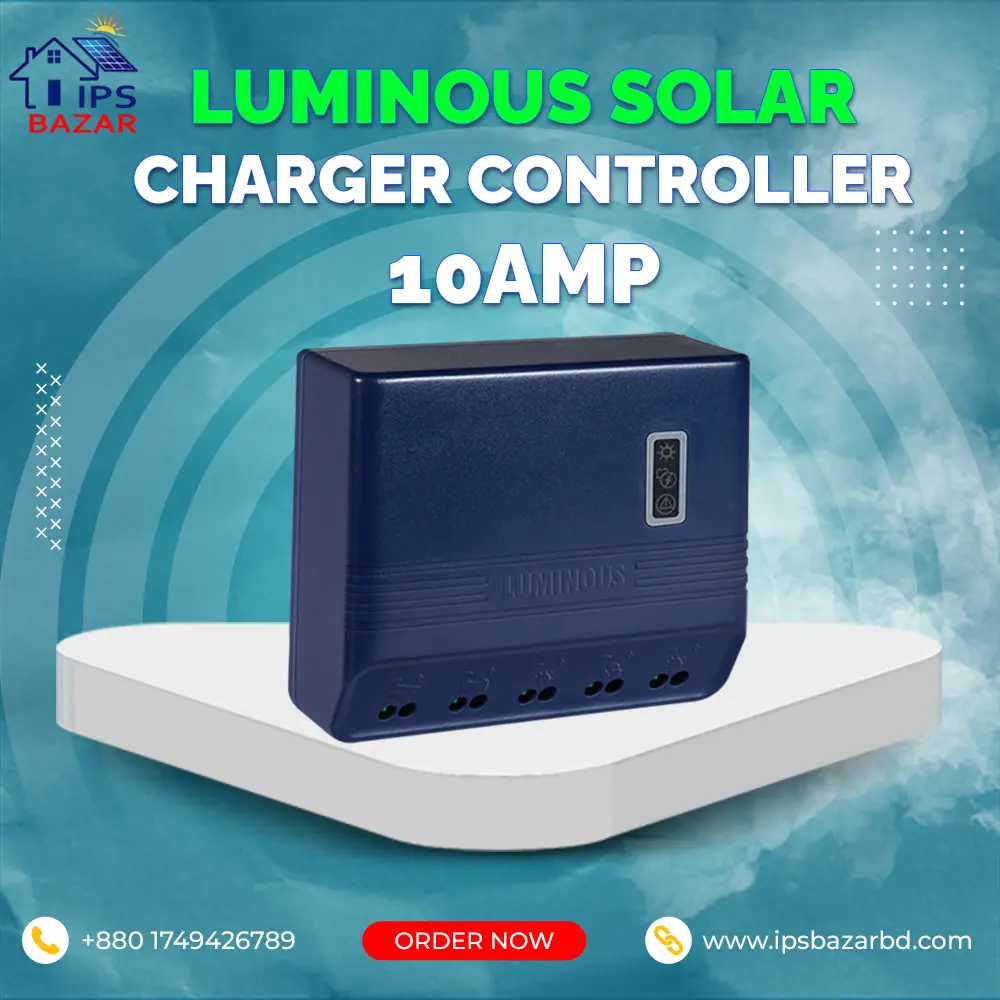

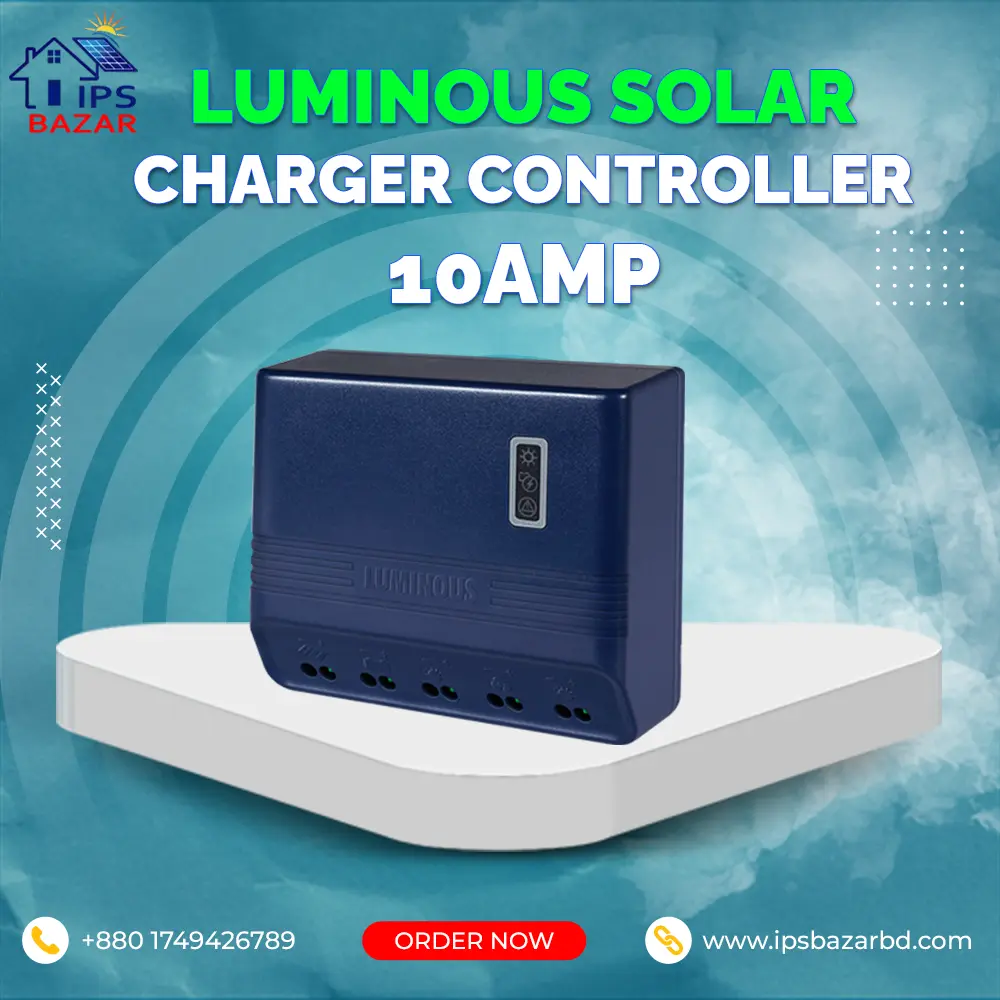

Luminous 10 Amp Solar Charge Controller in Bangladesh.
Original price was: 2,400.00৳ .2,200.00৳ Current price is: 2,200.00৳ .
Out of stock
| Brand | Luminous |
| Battery Type | Lead Acid |
| Float Voltage | 13.8V at 12V / 27.6 at 24 V |
| Low Voltage Disconnect | Voltage Controlled |
| Boost Voltage | 14.5V at 12V / 29.0V at 24 V |
Out of stock
2 reviews for Luminous 10 Amp Solar Charge Controller in Bangladesh.
Clear filtersLuminous Solar Charge Controller 10 Amp Best Price in BD
Luminous solar charge controller is required to convert Normal Inverter batteries into solar Solutions. It is used to charge batteries using solar panels. The other use of solar charge controller is to run DC load. Luminous Charge Controllers are PWM-based controllers with 98% efficiency. It has a USB charging Option for mobile charging & dusk to dawn feature. The dusk and down feature is used in street light application where lights is switched off in the morning and Automatically it turns on in the evening. It comes with Electronic & Software controlled protections. Maintenance Free. USB Mobile charger Output.
Product Specification of Luminous Solar Charge Controller 10 Amp
| Brand | Luminous |
| Battery Type | Lead Acid |
| Float Voltage | 13.8V at 12V / 27.6 at 24 V |
| Low Voltage Disconnect | Voltage Controlled |
| Boost Voltage | 14.5V at 12V / 29.0V at 24 V |
| System Rating | 10A at 12/24V |
| Technology | PWM |
| Maximum Solar Panel Voltage | 45V |
| Maximum Solar Panel Wattage | 200Wp at 12V / 400Wp at 24 V |
| Operating Temperature Ragne | 0 deg C to + 50 deg C |
| Dimension | 138 x 57 x 129 mm ( L x W x H ) |
| Power Connection | 30A Euro Terminal Block |
| Wire Size | 6 mm2 Maximum |
| Grounding | Positive |
| Net Weight | 280 gm |
| Enclosure | ABS Plastic, IP21 |
Features:
- Automatic selection of 12V / 24V battery
- 98% efficiency
- Fuse less electronic & software controlled protections
- USB port for Mobile charging
- Option of SMF and lead acid battery selection
- Load controller with LVD & dusk to dawn feature
Technical:
- PWM based technology
- Automatic battery voltage selection of 12/24 Volt.
- In-built low voltage disconnect & 20% extra power than rated capacity
- Supports up to 200 Watt panels on 12 Volt Battery
- Supports up to 400 Watt Panels for 24 Volt battery.
