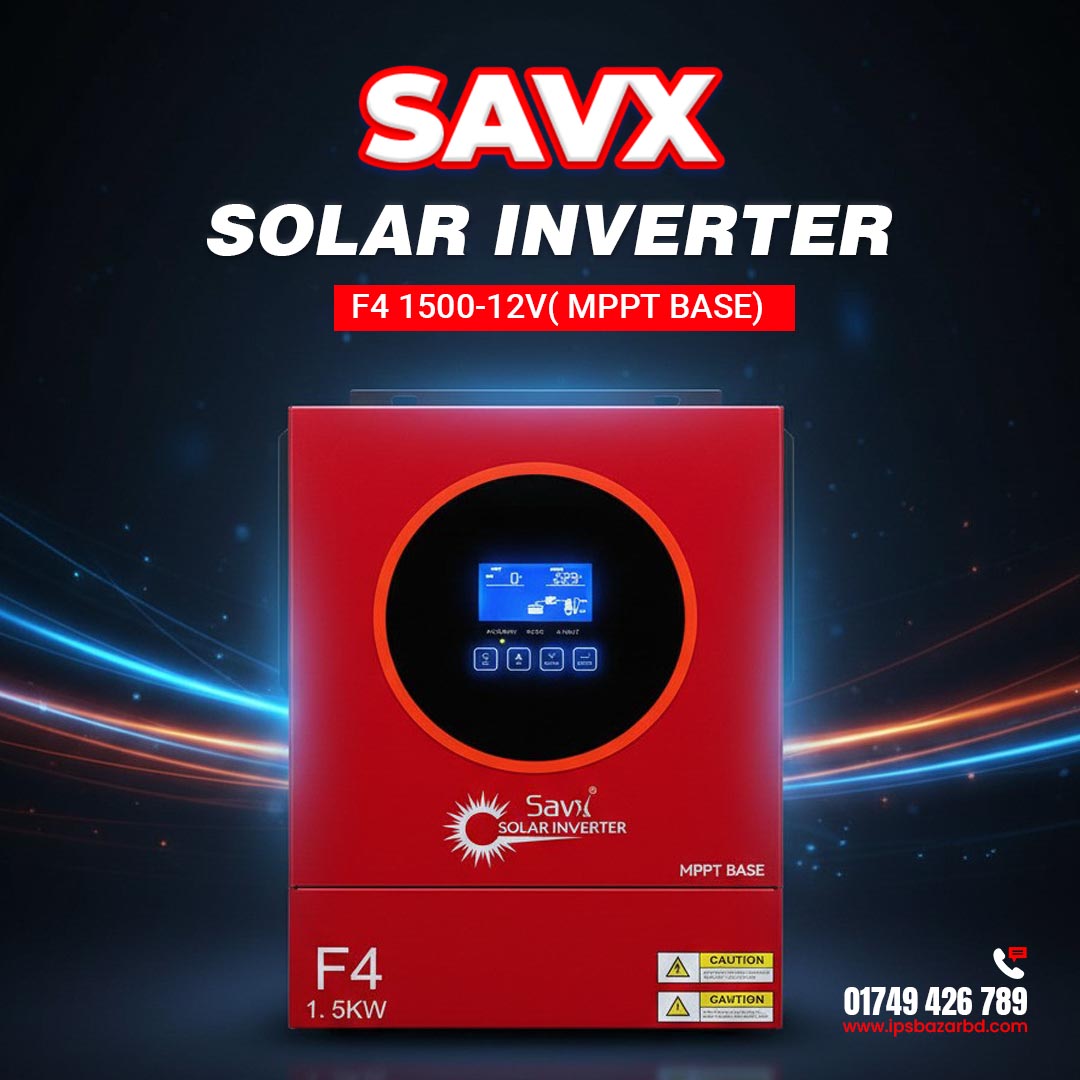

Savx F4 1500-12V Solar Inverter ( MPPT BASE)

1500VA / 1500W Solar Inverter

Key Features:

• Rated Power: 1500VA / 1500W

• Output Type: Pure Sine Wave (stable & clean electricity)

• Battery Support: 12VDC

• Solar Charger: MPPT, Max PV Power: 2000W

• Dual Charging: Solar & AC

• Efficiency: 93%

• Surge Power: 3000VA

• Display & Communication: USB / RS232 (Optional: CAN & RS485)

• Safety Compliance: EN/IEC62109-1 & EN/IEC62109-2

Technical Specifications:

AC Input:

• Voltage: 230VAC (Selectable 220–240VAC)

• Voltage Range:

  • 170–280VAC (For Personal Computers)

  • 90–280VAC (For Home Appliances)

• Frequency: 50/60Hz (Auto Sensing)

AC Output:

• Voltage Regulation: 230VAC ±5%

• Transfer Time: 10ms (PC Mode), 20ms (Home Appliance Mode)

Battery System:

• Battery Voltage: 12VDC

Solar & AC Charging:

• Max PV Open Circuit Voltage: 500VDC

• MPPT Operating Voltage: 60–450VDC

• Max Solar Charge Current: 80A

• Max AC Charge Current: 60A

• Max Combined Charge Current: 80A

General Parameters:

• Operating Temperature: -10°C to 50°C

• Humidity: 5%–95% RH (Non-condensing)

• Dimensions: 348 × 270 × 95 mm

• Net Weight: 5 kg

Applications:

• Ideal for home and small off-grid setups
